Make Your Museum Talk: Natural Language Interfaces for Cultural Institutions

Stefania Boiano (freelance), Giuliano Gaia (freelance), Morgana Caldarini (Jargon), Italy

Abstract

A museum usually talks to its audience through a variety of channels, such as Web sites, help desks, human guides, brochures. A considerable effort is being made by museums to integrate these different means; for example, by creating a coherent graphic layout for digital and printed communication, or by giving the possibility to contact the human helpdesk via either e-mail or chat. The Web site can be designed so as to be reachable or even updateable from visitors inside the museum via touch screen and wireless devices.

But these efforts seem still far from reaching a real, complete integration due to the difficulty of creating a coherent and really usable interface for different means and situations. We have all experienced how difficult it is to integrate different information, coming from different sources, with different formats, inside a common frame like the Web site, and how difficult it is to update it continuously. Moreover, the Web site is simply inaccessible to computer-illiterate persons.

One way to achieve a deeper integration comes from a new generation of natural language recognition systems and their user-friendly interfaces. These applications are able to understand text inputs and spoken language coming from any source (e-mail, chat, Web forms, phone). After getting the input, the system will try to find the appropriate answer by applying complex interpretation rules and by searching different databases inside or outside the museum's infosphere. After the answer is found, it can be transmitted to the user by a variety of means: Web, e-mail, cell phone messages, vocal messages.

Such interfaces can integrate many useful applications: museum mascot, interactive guide, shop assistant, first level help desk, e-learning tutor and customer care. It is also easy to imagine a proactive role; e.g. since the system can dialogue in real time with users, also getting valuable data about their needs and desires, it could personally invite people to museum events, always in a very interactive and natural way. Is this science fiction, particularly for low-budget museums? Perhaps not. It is now possible to develop powerful and easily maintainable solutions on low-cost platforms, integrating the museum's IT infrastructure with artificial intelligence based characters. They could act as a front end for natural language recognition engines, speech recognition systems, and existing database and content management applications. The paper will present these new solutions, together with the first case histories of natural language interfaces usage. Finally, the paper will explore some of the exciting possibilities opened for museums and cultural institutions by the integration of these innovative means.

Keywords: bot, chatbot, dialog, interaction, natural language interfaces

Introduction

During 2002 we (Stefania Boiano and Giuliano Gaia ) launched ourselves into the project of rebuilding the whole Science Museum of Milan Web site (www.museoscienza.org). The aim was to build a more usable, complete and coherent Web site, and to experiment with new online education tools. The first part to be realized was a very large section about Leonardo da Vinci, with Flash interactive educational games and a massive amount of information about Leonardo and his works (see www.museoscienza.it/leonardo for an Italian preview). A Shockwave 3D version of the Ideal City imagined by Leonardo was also under development by the Politecnico of Milano (Gaia-Barbieri 2001).

During the previous years, some experimental chat sessions between an expert of the Museum and some remote classes had proved successful and involving for pupils (see Gaia 2001). The problem was the difficulty of devoting staff time to this activity. So we included in the rebuilding project the implementation of a chatbot, a piece of software designed for dialoguing on the Internet via text chat with human users. The bot task was to answer visitors' questions about Leonardo and his works.

Chatbots are not a new idea. Eliza, the famous software icon who simulated a psychiatric interview in the Sixties, was somewhat an ante-litteram chatbot. Chatbot started to flourish in Internet Relay Chat (IRC), an enormous chat environment born in 1988 and still commonly used. IRC offered powerful programming options to its more experienced users, so many programmers started creating software to simulate human chatters (Herz 1995) .Today there are many different kinds of chatbots able to chat in different languages. (Check for examples at www.agentland.com ). Most of them are based on the same principle: the text input of the human counterpart is compared to a knowledge base of sentences and keywords, in order to identify a suitable answer using matching rules set by the programmer.

Chatbots are used mainly for entertainment, even if some alternative applications are arising in the commercial field (for example, as virtual shop assistants) and in the cultural one (an interesting example as a virtual tour guide is being presented in MW 2003 too; see Almeida-Yokoi 2003).

In our project, we teamed with two specialists in chatbot technology (Morgana Caldarini, co-author of the present paper, and Andrea Manzoni, both founders of Jargon, a Milanese Web agency). They launched in April 2002 an innovative Italian chatbot answering to the name of Alfa (currently online at www.jargon.it ).

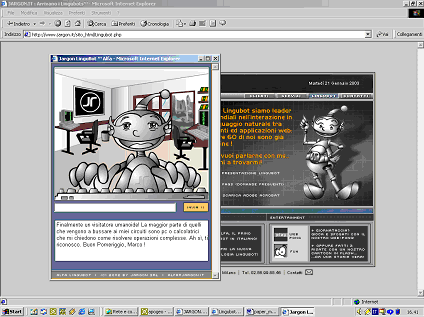

Fig. 1 - Alfa, the Italian chatbot created and trained by Jargon (alfa.gif) - http://www.jargon.it

The project was quite ambitious and articulated in different steps. Unfortunately, the whole project of rebuilding the Web site was stopped by the Science Museum in December 2002, and with it the chatbot project. So we will describe here all the project steps, even if only the first three steps have been completely or partially implemented.

Step 1: the Bot is Created

The first step is the creation of the bot. This means defining different aspects:.

Application field: as we said before, the first application field we planned for the chatbot was to answer questions about Leonardo da Vinci. It seemed a good start, because:

• It was a way of experimenting with the chatbot extensively in a significant but not risky way (using it as a shop assistant would have been more difficult as a first step).
• An amusing and innovative feature would have been added to the Science Museum Web site
• Since we were creating the large Web site section about Leonardo, it was relatively easy for us to program the chatbot to push to users specific Web pages related to their questions

• Great scalability - potentially unlimited number of concurrent user sessions (dialogues)
• Ease of Integration with other systems / legacy back-end databases and applications
• Ease of use of the Windows-based Authoring system
• Powerful dedicated scripting language for implementing sophisticated, dynamic pattern recognition rules
• Powerful dialogues logging and statistical analysis system

• it was possible to offer technical information about the way Leonardo's machines worked from an unusual and amusing "subjective" point of view.
• it was possible to justify some errors or misunderstandings of the bot during the dialogue due to its artificial, not human, nature : "Leonardo did not teach me about that, so I cannot understand what you are trying to say me."
• we had more freedom to create new "gestures" - a machine can nod and smile, but also fly, transform itself, and so on, in a more natural way than an anthropomorphic image.

Personality: strictly connected to the physical aspect is the character personality. To make a character realistic you have to create not an "answering machine" but something simulating the complexity of a human relationship with attitudes varying according to the conversation. For example, if a bot is insulted by a human being, to be realistic it has to become angry and stay so for a significant amount of time. Facial expressions and gestures can reinforce its personality. So it is important to define the personality well and to shape answers accordingly, even if a certain degree of incoherence is also necessary not to make the bot reactions too predictable. We tailored for our bot a calm and solid behaviour with some irony.

Step 2: the Bot Learns

Once the bot is defined, the difficulty begins : in order to talk, the bot has to learn how to interpret and answer the user's input. As said previously, a Lingubot comes with a pre-set knowledge base of the specific language and a corpus of interpretation rules, but this is only the first floor of a much more complex building. The bot has to be carefully "trained" to give it the possibility of accomplishing the task it was created for. In our case, as a virtual guide, the bot had to learn a lot about Leonardo and his life. Moreover, the most difficult task is to connect questions to a specific answer and to understand when the user is going outside the bot field of expertise.

We had the precious help of two assistants, Davide Radice and Felice Colasuonno, both coming with a strong humanistic background but not having special programming skills nor previous experience in chatbot programming .

The bot was trained by going through 4 different phases, which overall lasted one month:

1. The two operators were trained by experts at Jargon, and learned all the techniques and concepts behind making a Lingubot. This required one week of lessons and hands-on experimenting.
2. After the training session, the operators analysed a huge corpus of information about Leonardo coming from our Web site, defined a grid of concepts and their relations, and then re-wrote the content of the corpus in dialogic form.
3. The specific knowledge base was loaded into the bot's "mind", by creating all the required special dictionaries and the generalised pattern recognition rules (called "recognitions"), and by linking the proper answers and bot "emotions" to each recognition. Then the specific knowledge base was integrated and refined using interviews with museum guides, FAQ's lists, e-mail from visitors of the museum Web site and log file analysis. During this step, the Lingubot was tested by our actually talking to it and checking that the recognition of concepts worked independently from the words used to express them.
4. The Lingubot was activated and published in a restricted area, to be tested by a larger number of beta-testers: meanwhile, the Lingubot was integrated with the Web site in order to open pages, and show documents and animations about Leonardo and his inventions.

Step 3: the Bot Chats

After receiving the basic training, the bot is able to start written conversations with real users in the pre-defined language. To understand how this happens, let's see how the bot reacts to a user question.

1. As a first try, the bot compares the sentence to its knowledge base, searching for a match and the related answer. On finding it, the bot writes back the answer; otherwise, it passes on to the next step.
2. If no perfect match is possible, the bot tries to guess the meaning of the sentence by identifying some significant keywords, matching them with grammatical rules and the general context of the conversation (for example, if the previous questions of the user were about a specific Leonardo's manuscript, in the question "where can I find it today?" the bot assumes that "it" is related to the manuscript). This assumption ends when it clearly realizes that the user has changed subject.
3. If the bot definitely does not understand the meaning of the question, it can:
   • admit that the input has not been understood and ask the human counterpart to reformulate the question
   • try to deceive the user with conversational tricks, such as changing subject, or telling a joke, or "nodding" - as every one of us has done in similar situations!


Of course, the probability of getting the right answer increases with the size of the data base. Hence, continuous work on widening and fine-tuning the knowledge base is necessary: a great help with this regard comes from the analysis of the users' dialogues.

The interpretation of the meaning of human sentences is a most problematic point. For this reason Turing chose the dialogue man-computer as its operative test for Artificial Intelligence - even a last-generation bot would not pass it, since chatbots can always be put on the wrong track by ambiguities of the language in the sentences of the human user, or just by typos. Nevertheless, a well-trained bot can carry on even long conversations in a credible way and perform efficiently many tasks.

Once properly trained, the bot is ready to start its life as a virtual expert, since it is able to "understand" most user inputs and try to find appropriate answers. The bot can also open pre-defined Web pages related to the question, and it can recognize returning users using cookies - this offers the possibility of a high degree of personalization. When a user is recognized, the bot can scan logs of previous dialogues and tell the user: "I remember you were interested in Leonardo's flying machines. Do you know we are opening a special exhibition on this subject?"

Logs generated by dialogues are valuable because they:

• Provide much deeper insight into users' needs and desires than do usual Web site statistics
• Permit one-to-one marketing activities like the one described before
• Offer the possibility of refining the bot's abilities to understand human sentences and to fix weak points or answers that prove to be badly accepted by users (for example, an ironical answer felt as insulting by most interlocutors)

Like humans, bots never finish learning. By studying conversations made by the bot during its activity, operators can fix conversational situations in which the bot does not give a proper answer, and can identify subjects human users are particularly interested in and enlarge the knowledge base accordingly. In fact, most of the knowledge base work is made after, and not before, the publishing online of the bot. At least six months of continuous refining work is usually needed to make the Lingubot able to carry on a good number of conversations on its specific subject.

For instance, Alfa, the Jargon bot, in the period April-December 2002 performed more than 200,000 conversations. All of these conversations were recorded and analysed, both manually and automatically, by Jargon Authors. This brought to inclusion in the Italian Lingubot Basic Knowledge Base of more than 40,000 new terms, 4,500 recognition patterns and thousands of keywords and interpretation rules. After 9 months of extensive training, Alfa's recognition success rate is now stable at around 97%.

Unfortunately, as mentioned before, in December 2002 the Leonardo project was stopped, so the bot could not undergo the extensive testing scheduled before the launch, programmed for February 2002. From here on, we will describe the further steps of the project which were planned for a period of 9 months from the launch.

Step 4: the Bot Sends e-mail

Once the bot recognizes a user, it can also offer the possibility receiving e-mails about specific subjects. These emails can be just traditional text newsletters, but with an extra link to the bot. By clicking that link, the user can start a conversation with the bot directly talking about the newsletter content. For example, the user can ask the bot why it signalled that specific conference to him, or ask questions on specific things that are not specified in the conference Web page, or ask about other events related to that one. In fact, a well-trained bot added to a newsletter can enhance significantly both user satisfaction and the collecting of feedback.

During our work on the Leonardo section, we had realized a virtual postcard page where the user could send to friends, together with a message, unusual drawings by Leonardo. We experienced a high level of interest and satisfaction with this page. We planned to offer users the possibility adding to their postcards a link to the bot. This way, the users could offer friends the possibility starting an unusual conversation about the postcard image. Moreover, the users could tell the bot secret messages to be revealed during the conversation with the friend. This was intended as a tool to increase Website visits, but it also ould have educational side-effects: for example, the bot could focus conversations on the image, stimulating the user with cultural questions; only after getting a right answer would the bot reveal the message of the user's friend.

Step 5: the Bot Talks

Downloading a free plugin, Web site visitors are able not only to read what the bot says but also to hear its words, thanks to a voice synthesizer. We decided to implement this feature because it made conversations more engaging, especially for pupils, and also more accessible to visually impaired people not equipped with vocal browsers. The main problem with vocal synthesizers is intonation: since synthesizers cannot understand the meaning of the sentence, they pronounce every word singularly, with no connection to the other words. This is a major problem especially with languages like Italian which are strongly based on intonation (for example, interrogative meaning to a sentence in Italian is mainly given by intonation). The choice to make the bot look like a machine was also intended to "justify" its unnatural way of talking.

During 2002, AT&T released a new generation of voice synthesizers called "Natural Voices" http://www.naturalvoices.att.com/ which are able to read English with nearly natural intonation, and able to give "colour" to sentences. This could improve significantly a bot's talking capabilities.

Step 6: the Bot Listens

Talking is only half of the vocal interaction, and the easy one. What we really wanted was to make our bot able to listen to the users on the Web and outside the Web. In our opinion, this step is very important because bots could be very effective if used inside the museum, for example in a multimedia kiosk.

During 2002, a renowned Italian group of digital artists, Studio Azzurro, tested in the Science Museum an innovative system called "Torkio". Torkio is a digital character interacting with museum visitors, remotely controlled by a human operator. The success of the installation is high, but the need of skilled operators limits its operating times. Observing the high emotional impact of the digital character on museum visitors, we thought it would have been very interesting to put the bot in the museum too; the bot could have been an effective virtual guide. A "talking kiosk" could invite visitors to play, could ask questions, offer answers, show multimedia files related to their questions, collect their emails for newsletters, and be an amusing technological exhibit itself.

In this case the limit is technology. Till today, speech recognition systems work well only when:

1. the system has been trained a lot on a single voice (like IBM Via voice system, that requires long training by the user before becoming really usable)
2. the system has to recognize only few words (like recognition systems of phone companies' directories: they have to recognize only single words clearly pronounced by the user).

None of these is true in our case, since the bot should be able to interact with plenty of new users who pronounce long sentences in a natural way, sometimes "worsened" by the emotions ( e.g. a laugh or anger) created by the conversation, and with a lot of environmental noise. But a new generation of low-cost and effective speech-recognition software has been announced by DARPA founded researchers at Carnegie Mellon University http://www.speech.cs.cmu.edu/. The English and French speaker independent speech recognition modules are already available, and the Italian module is being developed by Jargon. So it is possible that an effective listening ability could soon be added to chatbots.

Step 7: the Bot Goes Wireless

Going out from the Web does not mean only going into the museum as a new-generation interactive kiosk. Kiwilogic provides Lingubot with the ability of interacting with users using cell phones messages (SMS), and more generally using wireless systems.

This opens up interesting application fields:

1. answering questions of the users about the museum, its activities and its collections both inside and outside the museum. A user could send an SMS to the bot to know when the conference of the day is starting, or if a certain book is available in the museum library.
2. Many museums are experimenting with handheld devices, as witnessed by the rich "handheld" session in MW 2003 (see, for example, Cigliano-Monaci 2003). A bot could easily interact with the user through a handheld device, asking the user to find certain objects inside the museum, in a sort of interactive treasure hunt.
3. If equipped with an effective voice recognition system, the bot could talk on the phone with users, providing much broader access to its information and interactions, even to computer-illiterate people.

Step 7: the Bot Is Integrated with the Museum Data Sources

Lingubot technology can be easily integrated with external databases (via ODBC/JDBC) and to external applications and sources using HTTP or TCP/IP. Bots can also call applications directly. This means that the bot can get data from any digital source inside or outside the Museum infosphere.

In our project, we had planned to integrate the chatbot with the following data sources:

1. collections database
2. library database
3. guided visits booking system
4. Web site
5. internal bookshop
6. online Web international bookshops

This way the bot would have been able to provide different services to the user:

• provide information about collections, links and books related to them
• act as a "virtual librarian"
• promoter and assistant in booking guided visits
• promoter and assistant in online and offline shopping

The key and the strength of the system was the integration of the different data sources. The bot could in real time adapt its messages to the situation of the bookings; for example not promoting services already full or books sold out. Of course, the bot is only a first-level help-desk; if the bot is not able to fulfil its mission, for example because it does not understand what the user is asking, then it redirects the user to the human help-desk.

Step 8: The Bot Extends Itself By Interacting With Its Peers Over The Web

Integration could go further than the previous point. Since a well-trained bot becomes a specialized database itself, and it is easy to make bots communicate between themselves over the Internet, it is also easy to imagine a situation in which a bot in the Science Museum of Milan gets a question on English steam trains and connects to its "colleague" at the British national Railway Museum to find the answer; this would be even easier for more organized tasks such as online bookings or shopping, and could allow us to develop one of the first effective, practical working infrastructures of the "semantic Web.

Conclusions

Every time a new technology hits the market, it has to answer three main questions posed by potential users (including museums):

1. Is it useful? In the paper we have described the plurality of applications and services that this technology could help to create inside and outside the museum. In our opinion the key point is to see this technology as a new interface, capable of integrating and enhancing traditional Web and digital interfaces.
2. Is it expensive (in terms of money and resources)? Since many of the necessary software packages are open source, the overall budget for hardware and software is not high. The system requires a significant amount of work for training and refining, but this part can be a very interesting task, for example, for university students and researchers. We discovered that training a bot can be a very stimulating and involving task even for teenager students. This adds further educational value to the tool.
3. Is it lasting?In a fast changing environment like the Web, with new technologies rising every day, it is difficult to predict whether a technology will last or will be ephemeral. Chatbots, however, go in the direction of simplifying the interface and making it more natural for the user, and in our opinion this should make their technology a good bet, or at least an experiment worth trying.

References

Almeida P., S. Yokoi (2003). Interactive Conversational Character as a Virtual Tour Guide to an Online Museum Exhibition, paper presented at Museums and the Web 2003. http://www.archimuse.com/mw2003/papers/almeida/almeida.html

http://www.archimuse.com/mw2003/abstracts/prg_200000698.html

Cigliano E., S. Monaci (2003). Multimuseum: a multichannel communication project for the National Museum of Cinema of Turin, paper presented at Museums and the Web 2003.

http://www.archimuse.com/mw2003/abstracts/prg_200000703.html

Herz, G.C. (1995). Surfing on the Internet, Little Brown & Company.

Gaia, G. (2001). Towards a Virtual Community, paper presented at Museums and the Web 2001, http://www.archimuse.com/mw2001/papers/gaia/gaia.html

Gaia G., T. Barbieri (2001). HOC - Politecnico and Museum of Science and Technology of Milan: A Collaborative Exploration of Leonardo's Virtual City, paper presented at ichim 01 http://www.archimuse.com/ichim2001/
