Slavko Milekic, University of the Arts, Philadelphia, US

Abstract

This paper examines emerging interface paradigms, to a certain extent exemplified by Apple’s iPhone interface for interacting with complex visual content. It provides an overview of 15 years of research devoted to the creation of intuitive user-friendly interfaces, as well as conceptual analysis of design principles. Implications for the design of interfaces for cultural heritage information are also discussed.

Keywords: interface design, gesture-based interfaces, affective computing

Introduction

We live in an increasingly visual world where new technologies are supporting human-friendly ways of exchanging and supplying information. Although we may have an illusion that we actually listen to each other, humans predominantly rely on the sense of vision for accessing information. Many traditional psychological experiments have shown that the information coming through the visual channel overrides information from all other senses. Thus it is enough to visually tilt the room to make us fall (even though all of our other senses are telling us that we are standing solidly upright), or to make us hear non-existing sounds by substituting the original video clip of “talking mouth” with another one (one would “hear” the sound that one sees the mouth voicing and not the sound played with the video clip). In this context, the success of different technologies that promote exchange of visual content, like modern cell phones or Web sites like “Flickr” or “YouTube”, is not surprising. These developments are especially significant in the fields of exchange and accessibility of cultural heritage information which tends to be highly visual in nature, with fuzzy boundaries and subject to numerous interpretations. In this paper I will try to examine the development of more “humane” interfaces for visual content especially in their relation to cultural heritage information.

Basic Premises

Although this tends not to be well known among the general population, most of the interface designs (in a broader sense of interface) that are now ubiquitous began in direct response to a special need. These include the invention of the typewriter and modern computer keyboard, the invention of sound recording devices like the phonograph, long-playing records that evolved into CDs and now MP3 files, and the remote control (the number of which in the US now exceeds the total number). Even the telephone, a communication device with an enormous effect on humankind, was invented as a means of transmitting the human voice at a distance for the hearing impaired. In 1872 Alexander Graham Bell founded the school for “deaf-mutes” in Boston, now part of Boston University. The invention of both the telephone and the first phonograph were initially motivated as solutions to the problems of populations with special needs.

Fig 1: Alexander Graham Bell speaking into the first telephone compared to the modern mobile phone

One of the underlying premises of this paper is that good interface designs tend to be the ones that are usable by the broadest segment of the population. This idea is not new although it tends to be forgotten because of our fascination with new technological capabilities. The success of Kodak’s “point-and-shoot” camera, and now the Flip digital camcorder, was due to its simple interface colloquially referred to as “idiot proof”. The old advertising slogan “so simple that even a child can use it” reflects another important insight. In many respects young children, just like the growing population of elderly or non-native speakers of a specific language, can be viewed as a special needs population. Young children lack sophisticated cognitive skills, have problems with fine motor control, are preliterate, and have a short attention span. All of these characteristics make them ideal “testers” of interface solutions. In other words, if a particular interface design is accessible to young children, then it is also accessible to the rest of the population. Many of the interface solutions that will be discussed in this paper initially started as design solutions for children.

Questions

In approaching interface design for any population the usual question one may ask is:

What characteristics of the target population are most relevant for the design process?

and, assuming that one has come up with a satisfactory answer to the first question, the next one is:

What is the goal of a particular interface design?

It is possible to answer the first question by listing a number of descriptive characteristics of potential users; for example, the quality of their attention span, short-term memory retention, etc. One of the problems with this approach is that the list is potentially endless. The reason for this is not only because of the possible number of characteristics one could take into account, but also because of the qualitative and quantitative differences which emerge as a function of age. Another problem that often occurs while focusing on a set of specific characteristics is the tendency to forget 'the big picture' and the context in which the particular application will be used. By saying this, I don't mean that knowing these characteristics is not important. On the contrary, taking into account the particulars of users’ perceptual, cognitive and motor abilities is essential for good design. However, the full value of knowing these details comes out only in approaches where users’ activities are viewed in a broader social context. This means that answering the second question will dramatically influence design strategy. For example, if the goal of a particular interface is to transfer certain knowledge or facts, this design will be very different from one with a goal to enable free exploration and “learning through discovery”.

Finally, the third question is:

Which guiding principle(s) should one adopt for the creation of a particular interface design?

In the context of a modern museum and/or gallery experience, and especially as it relates to cultural heritage information, I assume that the goal of museum visitors is to learn something and that the goal of museum educators is to provide easy access to an abundance of unbiased information and foster learning through discovery.

Design Principles

In this paper, and in a somewhat unorthodox fashion, I will focus on the users’ basic needs as a context for providing guidelines for interface design. So far, most of the suggestions for interface design (as described in “Historical overview” section of this paper) focused on interface characteristics. Many of these suggestions are completely valid and compatible with my own approach. However, I would like to put these in the context of the needs of humans as social organisms. I feel that in this way one is more likely not to lose the “big picture” and blindly follow certain design guidelines.

Speaking in most general terms, the needs of the target population that should be taken into consideration when designing interfaces for digital environments are the need for:

• action
• affection, and
• control

In the following pages I will try to: (a) justify the choice of these guidelines by presenting the supporting evidence from available literature, and (b) provide illustrative examples of their application in interface design.

Action

In interface design, support for user actions is often confused with providing a mechanism (often convoluted) for achieving a certain goal. In a traditional GUI (Graphical User Interface) this is most commonly achieved by choosing a ‘menu’ option, then selecting appropriate ‘action’ from a drop-down menu. The process often includes three or four steps in order to trigger the ‘action’.

In this paper, the term action is used to denote spontaneous user actions that are related to an individual’s “knowledge of the world”; for example, pointing (or touching) the object for selection, being able to move (push) objects around, and assuming that the quality of action (pushing object faster) should affect the outcome of one’s action.

The ideal interface should provide support for context relevant actions. This means that if a map is displayed on the screen, the user should be able to scroll it, zoom in, zoom out and find relevant information about landmarks. However, it is not only “what” but also “how” the environment supports user actions that is important.

The first ‘revolution’ in interface design came with the concept of Graphical User Interface and ‘direct manipulation’, a somewhat misleading term (Shneiderman, 1998) because it was referring to computer-mouse-based control. Even though researchers found out that touch screens were more efficient for basic user interactions (selecting, moving, etc.) a long time ago (Sears, Shneiderman,1991) it took almost two decades for the invention of the iPhone.

One of the advantages of touch screens is that they are re-definable surfaces. This means that the same interaction surface can be used to display a keyboard, a photograph, a map or one’s email browser. Even though standard computer monitors can display the same things, the advantage of touch screens is that they allow direct interaction with displayed objects. Another advantage comes with portable touch screen devices which are accessible to the users wherever they happen to be – in their cars, in the store, camping, etc.

There is a growing consensus among HCI researchers that the description of interaction between humans and computers in terms of action is more adequate than the description in terms of information processing. In his monograph, Being There, Andy Clark writes:

Cognitive development, it is concluded, cannot be usefully treated in isolation from issues concerning the child's physical embedding in, and interactions with, the world. A better image of child cognition (indeed of all cognition) depicts perception, action, and thought as bound together in a variety of complex and interpenetrating ways. (Clark, 1997, pp 37, italics in original)

Clark uses the example of a puzzle assembly task. A possible approach to putting the puzzle together would be just to look at each piece and figure out mentally where its place would be. However, both children and adults often use the strategy of 'trying out' the fit of various pieces, and rotating the pieces themselves rather than trying to perform the same operation mentally. These actions labeled as ‘epistemic’ by Kirsh and Maglio (1994) have the purpose of making the task easier by reducing the cognitive effort necessary to achieve the goal.

Some authors go as far as to suggest that human cognitive abilities are an extension of bodily experiences created by our early activities. Mark Johnson calls these kinesthetic image schemas (Johnson, 1987). An example of such a schema would be the container schema, which can provide conceptual structural elements (such as interior, exterior or boundary), basic logic (something can be either inside or outside), and allow for numerous complex metaphorical projections (for example, one gets in and out of a relationship, is a member of a certain group or not, etc.).

Action and interaction

Surprisingly enough, the concept of interactivity which plays the central role in modern digital applications has received little serious attention in the field of human-computer interface design. Most often, what is hiding under the label 'interactive' is no more interactive than an ordinary light switch. The reason for this is that the concept of interaction has a very broad meaning, ranging from the physical coupling of two objects to highly complex social interactions of humans. The interactivity level that is easily achievable with current digital technology falls somewhere in the middle, between the two extremes. It can be described as interplay of human actions with environment (computer) reactions. In this case, it is the reactive potential of an environment that defines the interactivity level (Kirsh 1997). However, in order for the digital applications to be truly useable, they should at least be able to support interactivity levels comparable to those of humans during structured activities such as tutoring or collaborative work.

According to Kirsh, human interactions involve a:

• certain level of co-operation between parties
• certain level of co-ordination of actions
• certain level of control over interacting parties, who can be influenced by ones' actions
• certain level of (tacit) negotiation between the parties as to who is going to do what and when.

Human interaction is also characterized by frequent interruptions, and sometimes dramatic, shifts in direction.

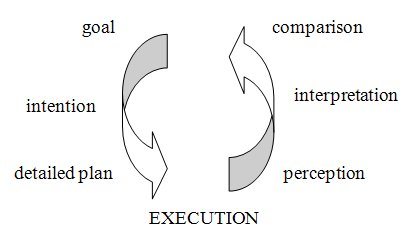

Fig 2: Norman's "decision cycle model"

Currently, the most widely accepted description of human-computer interaction is the 'decision cycle model' proposed by Donald Norman (Norman, 1988). It is based on the assumption that the users interacting with an application have fairly clear goals of the desired interaction outcome. The model proposes the following feedback loop: the user starts with a goal to achieve, translates this goal into intention to use certain actions to achieve the desired goal, and finally creates a list of the necessary operations (a plan) to execute the actions. Once the plan is executed, its effect on the environment is perceived, interpreted and compared to the initial goal. The cycle is repeated until the goal is reached, at which point the new goal is selected.

Kirsh criticizes Norman's model on the basis that goals need not be fully formed in a user's mind (Kirsh 1997). This is especially true for children's interactions with an environment. Children tend to 'discover' their goals based on active exploration of the environment. In the same article, Kirsh also points out another facet of interaction which is left unaccounted for by the 'decision cycle model' - the fact that we are actively contributing to the building of an environment in a manner consistent with our (long-term) desires and goals. For example, in order to remind myself to mail my bills, I always put them on the kitchen table that I have to pass by on my way out of the house. Although putting the envelopes on the kitchen table is not the same as mailing them, this preparatory activity creates a change in the environment that helps me decide to undertake the right activity (that is, formulate the 'right' goal) in the future. Thus, Kirsh (1997) suggests the incorporation of the following new forms of action and new forms of interactivity into the decision cycle model:

• preparation
• maintenance, and
• complementary actions

Preparation is an act of the active modification of environmental characteristics which facilitates the carrying out of subsequent activities or the reaching of certain goals. Preparation plays an important role for creative activities, including those where the end result is not known at the beginning of the activity. It is a known strategy of writers, painters and creative individuals in general to 'prime' themselves for the creative process by actively creating or seeking a stimulating environment. By providing external clues to the possible sequence of actions (plan) or to the components of a complex assembly (like preparing all of the ingredients for a recipe before cooking), preparatory activities have the effect of reducing cognitive complexity and mental effort in interactions with an environment. Thus, in designing digital environments for children, it is extremely important to provide support for diverse preparatory activities which, on the surface, may have little to do with the final interaction outcome. Digital environments have the advantage of having the potential to record and, if need arises, instantaneously reproduce the preparatory operations for certain activities.

Pushing the notion of preparation a little further, one may make a claim that all activity in a certain environment can be viewed as preparatory for the actions that are yet to come. This is nowhere more evident than in children's play: if two four-year olds are given a set of toy farm animals and other accessories like farm houses, fences, etc., very soon they will create an elaborate play environment. If, as is common practice, they are made to 'clean up the mess' after playing, chances are that the next time they meet they will not recreate the previous environment. However, if one preserves the results of their interactions, at the next meeting they will be able to continue playing as if there was no interruption. In this case, all of the previous actions can be viewed as preparatory for the continuation of playing.

Maintenance activities are often overlooked because they are so common and, for the most part, executed unconsciously and automatically. Since every system has a tendency to end up in a state of chaos (as every homemaker knows more than well), maintenance activities are a necessity rather than a choice. In the digital medium it is possible, although rarely implemented, to delegate the maintenance activities to the environment itself. Automated and adaptive maintenance can further reduce attentional and cognitive demands in interactions with digital environments, and as such are important for the design of user-friendly applications.

Complementary actions (also known as epistemic actions) are defined by Kirsh as external actions that “reliably increase the speed, accuracy or robustness of performance by reducing cognitive load and simplifying mental computation” (Kirsh 1997). As such, they are to be distinguished from actions undertaken to cause some change in the environment (Kirsh and Maglio 1994).

Children naturally use complementary actions whenever the complexity of the task strains their cognitive abilities, like in using their fingers for counting or while performing mathematical operations. Thus, an abacus can be viewed as a physical environment that vastly simplifies carrying out abstract calculations just by providing support for complimentary actions.

An example of a software package that supports user actions in interacting with complex visual content is ShowMe Tools™ (FlatWorld Interactives, LLC) designed by the author of this paper. ShowMe Tools™ can be best described as software that allows real time manipulation of visual content. Although superficially resembling popular programs for image manipulation (like PhotoShop™, and many other programs), and presentation tools (like PowerPoint™ and other kinds of ‘slide shows’), ShowMe Tools™ are conceptually very different and unique. In simple terms, other programs for image manipulation and presentation tools are designed to produce a final product, while ShowMe Tools™ software is action and process oriented.

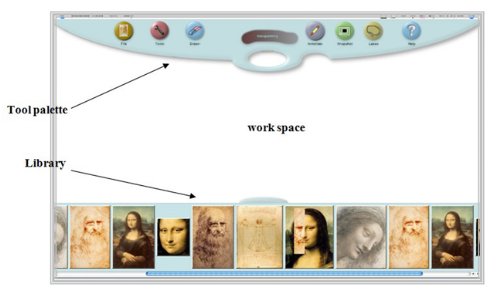

Fig 3: Basic layout of ShowMe Tools™ screen. Both palettes (the tool and the library palette) are automatically retractable so the work space expands to the size of the screen.

When using traditional image manipulation and presentation tools, all actions happen before the presentation. For example, one may manipulate a certain image in PhotoShop™ to create an image that will be displayed on a Web site, or to prepare it for print. To create a PowerPoint™ presentation, one has to spend time beforehand (often hours) to create a glitzy slide show. The final result is presented to a viewer, and no additional corrections or manipulations are possible. This creates a passive experience both for the viewer and the presenter, where both are bound by the final product.

In contrast, ShowMe Tools™ support an active approach to interaction with the visual content. Even though operations supported by ShowMe Tools™ are found in many image manipulation programs (flipping of an image, rotation, scaling) using an intuitive interface, these actions are available during the presentation, thus making the process an integral part of a presentation. This brings incredible flexibility to the presenter who is now capable of actively manipulating the course of the presentation and responding to any audience feedback/questions using the material already displayed on the screen (or by importing new relevant material).

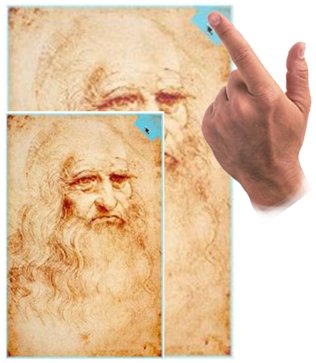

Fig 4: Resizing an object in ShowMe Tools™ environment by ‘pulling’ at (any) corner

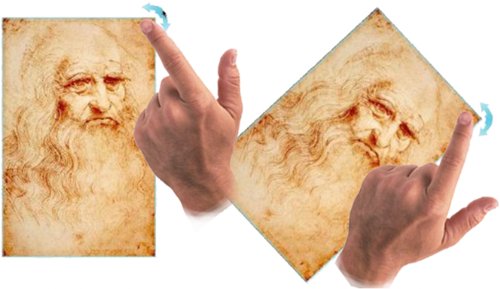

Fig 5: Example of object rotation in ShowMe Tools™ environment.

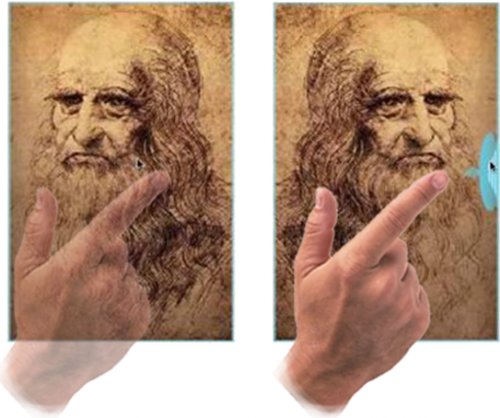

Fig 6: Object ‘flipping’ by pulling on (any) edge of the object

ShowMe Tools™ design abandoned the sequential and linear notion of “the next slide”. The whole presentation surface can be dynamically changed to illustrate new ideas or concepts. When used with an interactive whiteboard (large-scale touch-sensitive surface) this environment provides a low-cost solution to intuitive support of user actions. Current examples of use include the fields of art and museum education, design, architecture, biology and medical illustration.

To avoid increasing the cognitive load on the user, well designed interfaces should support the use of a natural, built-in, “knowledge of the world”. The most natural constraint on our environment (and probably the Universe as well) is the force of gravity. Gravity affects all living organisms, and since it is the most reliable feature of our natural environment, we take it for granted. However, it is helpful to dissect some of the more obvious consequences of the constant pull of gravity since (surprised?) they have serious implications on interface design for digital environments as well. The following list presents some of the 'knowledge' that is already built-in in humans by sheer virtue of their being organisms exposed to the force of gravity:

• sense of direction - up/down
• sense of weight
• friction
• inertia
• speed
• upright orientation
• stability/balance
• etc.

Adding bilateral symmetry, another biological characteristic that we share with most vertebrates, adds additional 'knowledge' to the list:

• direction - left/right
• concept of side

Clever use of tiny accelerometers/gyroscopes that can detect the movement and orientation of the device is what makes iPhone so easy to use, not to mention that it led to an explosion of add-ons that capitalize on these features.

Fig 7: The original “Labyrinth” game and iPhone rendition of it that uses the same kinesthetic and visual feedback as the original

Using gestures

Research on incorporating gestures in human/computer interaction started almost thirty years ago (Bolt 1980). However, gesture-based interfaces are still confined to different research laboratories and, if one disregards several ‘gestures’ used in pen-based computing or iPhone add-ons, there are practically no commercially available interaction devices based on the use of gestures. Wexelblat lists several reasons for this state of affairs: lack of adequate gesture taxonomies and classifications, development of gesture-commands instead of natural gesture recognition, and problems which arise because of the social and cultural components of gestures (Wexelblat 1998). Suggestions presented here are in no way solutions to these complex problems. However, based on my experience in building interfaces I think that there is a layer of gesture-based communication that could be extremely useful for supporting interactions between users and digital environments.

Several proposed gesture classifications (Kendon 1986, McNeill 1992, Efron 1941) converge on a handful of gesture types:

• deictic gestures: used for pointing at objects or space;
• metaphoric gestures: describe speakers ideas or internal state in a metaphoric way, like rotating one’s index finger to indicate dizziness;
• iconic gestures: depict the content of speech; for example, hitting with fist the palm of the other hand to indicate a head-on collision;
• symbolic gestures: culturally recognisable gestures with specific meaning, like the victory or OK signs;
• speech marking gestures: gestures used to accentuate speech; for example, by waving the index finger.

One must note that the above classification is largely based on gestures occurring during human-to-human conversation. Since the interpretation of most of these gestures relies heavily on context, their use in human-computer interaction is limited by current limitations in the field of computer- natural-language understanding. The exception is deictic (pointing) gestures, where the digital environment itself would provide objects and space that could be pointed to. Besides selection of objects by pointing, gestures involving objects can be further classified into gestures describing the form of objects (descriptive gestures), manipulative gestures that transform objects, and utilization gestures that use objects (Krueger 1993, Hummels, Smets and Overbeeke 1998). It is this subset of gestures that I suggest for use in enhancing communication between humans and digital environments.

There is another important and useful distinction one should make when trying to incorporate gestures into interactive systems: the difference between two- and three-dimensional gestures. Kramer defines three-dimensional gestures as movements of the limbs of the body which are detected by an application and processed as a stream of 3D co-ordinates with relative limb- and finger-positions. Two-dimensional gestures would be those produced by a movement of a finger, stylus or mouse cursor over a two-dimensional display surface (Kramer 1998). Most of the gesture-based interactions suggested in the following sections are the ones happening in a two-dimensional plane and compatible (to some extent) with the traditional interaction devices like a mouse as well as with interactive whiteboards.

Gesture-based navigation

If you happen to be walking to a nearby place and someone asks you where you are going, besides providing the information verbally, you would most probably also make a gesture in the general direction of the place you are going to. Your gesture augments the verbal information in providing the directional information (which does not have to be a part of your verbal answer; for example, “I am going to the pharmacy”), and often an estimate of distance (when something is ‘faaar’ away we tend to make broader gestures).

Using natural gestures for control of transportation vehicles (including airplanes and powerboats) is wide- spread: to turn left one turns the wheel, the lever or similar device to the left, and in the opposite direction to turn right. One would expect, then, that navigation mechanisms in digital environments would build on users’ expectations from the real world. However, this is not the case. Trying to make graphical user interfaces (GUI) more “efficient” led to the grouping of navigation controls in a small space, often on one side of the menu bar. Although such design practices definitively save on space and seemingly allow the user to focus more on content, they also introduce an unnecessary layer of complexity into interaction with the system. Menu choices or navigational buttons look alike although they may trigger very different functions, and even experienced users have to pay close attention when using less frequently accessed options. The problem is often remedied by providing a pictorial representation of an action on the “button” itself. This practice frequently backfires because of space problems: it is hard (and sometimes impossible) to provide clear pictorial representation of an action (like “sort these files/objects”) in a space which measures 16 x 16 pixels! Because of the problems the users had in understanding pictorial representations, brief descriptions of button functions made it back, and current application controls most often have both pictorial and written indication of their function. Another solution to the problem is to provide the written description of a control function as a roll-over hint – a text which appears next to the control if the mouse cursor ‘hovers’ over it for a prescribed length of time. Although this method can provide the needed information with sufficient detail, the price that the user pays is the disruption of the primary activity through mobilization of additional attentional and cognitive resources (one cannot not register an object which suddenly appears and, if one is literate, it is also hard to ignore the written text).

Adopting a simple principle that navigation in digital spaces should not claim more attentional or mental resources than navigation in real life would have significant impact on digital interface design. In order to uncover these design principles, we should ask ourselves what it is that makes navigation easier in real life.

First, it is the sense of direction. We are always going somewhere, and changes of direction at certain points make it possible for us to internalize the ‘map’ of physical space. Second, it is the length of time we spend going in one direction that provides us with the information about relative distance. Transplanting “directional” navigation on a computer screen does not have to come at any cost to screen space – it can be completely action based. Creating a small routine that constantly monitors the direction and amplitude of mouse (cursor) movements allows mapping of directional gestures onto navigation functions. For example, “hitting” with a mouse cursor the right or the left edge of the screen produces an appropriate navigational action. This suggestion was implemented almost a decade ago in The Theory of Language, an introductory linguistics text published simultaneously as a book and an interactive CD ROM (Weisler, Milekic, 1999).

Gesture-based exploration

Gesture-based exploration is similar to gesture-based navigation in terms of the system’s ability to detect and react to a user’s movements. However, these movements are directed towards manipulating objects, rather than space. The fact that digitally represented objects or data also occupy certain (categorical or organizational) space becomes evident only through interaction with the objects. Thus, gesture-based exploration of complex data spaces can be used to convey additional information about the data without an increase in cognitive complexity. For example, one may structure the data space in such a way that its organization is directly mapped on to exploratory activities.

Which modes of object manipulations (that is, manipulations of representations of objects and data) are traditionally supported in digital applications? One can point to objects, select them (mouse click), drag (mouse down and move), and ‘drop’ them (mouse release after dragging). It is also customary that one can ‘launch’ an application by double-clicking on an object. It seems that these basic interactions are sufficient for any kind of interaction with digital content. However, if one observes young children’s play with actual objects, it soon becomes evident that there is another activity which can be, but is traditionally not (with the exception of iPhone), supported in digital environments. The activity in question is throwing. Although “throwing” can be also implemented with a mouse as an interaction device, it is most naturally supported by a touch screen.

The "throwing" action occurs when a selected object is dragged across the screen and then released. For throwing to occur, a certain speed threshold value needs to be reached. The threshold is expressed as a linear distance (number of pixels) covered per unit of time (milliseconds). The threshold value can be fine-tuned so that the throwing occurs only when the user really has the intention to throw away the objects, and does not interfere with the selection and movement of objects at a "normal" pace.

There is no practical reason for not using the "throwing" as one of the legitimate actions in human-computer interaction repertoire. One must agree that throwing of the objects in real life is sometimes followed by losing of the same, and that a typical adult would rarely welcome the opportunity to "lose" an important file. However, in children's play, discarding an object by throwing it away, later followed by its subsequent re-discovery, is a common element.

The inclusion of the "throwing" action into interface design is not just a trivial addition to the interactions repertoire. The advantages of support for this kind of action are numerous and offer new perspectives on the design of children's software and intuitive interfaces in general. Some of the more evident reasons for supporting the throwing action in an interface design for young users are the following:

• minimal effort results in maximal effect;
• throwing is a natural, symbolic (semantic) gesture which does not need to be explained. Using a touch screen to support two-dimensional gestures is a low-cost (and, maybe, transitional) step towards incorporating gestures into interface design;
• it provides a simple way of exchanging and choosing objects;
• it allows exposure to and browsing of a large number of objects without cluttering the screen;
• it offers the possibility of increasing the complexity of interactions by taking into account the speed and the direction of the throw, the presence or absence of other objects in the trajectory of the thrown object, etc.;
• it allows mapping of a 'navigational space' to body actions, making exploration of 'digital spaces' easier;
• it allows alternative ways of navigation by making the 'background' (the desktop) also 'throwable'.

The practical application of "throwing" action in a touchscreen-based environment is illustrated by the "Veggie Face" and the "Throwing Gallery" modules of the KiddyFace installation in the Speed Art Museum in Louisville, Kentucky.

Fig 8: Illustration of throwing action in the "Veggie Face"module from the KiddyFace installation at the Speed Art Museum, Louisville, Kentucky (Milekic, 1997). See text for details

It seems that there is no need to explain the action of throwing to young children. Observations of young children interacting with the KiddyFace environment at the Hampshire College Children's Center indicate that even children younger than 3 years of age discover the throwing action while exploring the environment on their own. Very soon they discover an efficient way of throwing, using a short and quick 'flicking' motion. Interestingly enough, even after very short exposure to this way of interaction (it was available in only two out of ten modules), children generalized the expectations of this kind of behavior to other objects and tried to elicit it even in modules that did not support it. It is possible that the attractiveness of this kind of interaction comes from the fact that very small investment yields a substantial result, similar to the delight which very young children find in repeatedly throwing various objects outside of their cots.

Object "throwing" can be used to achieve a variety of exploratory and navigational goals without marked increases in cognitive complexity of visual interface design. In the module described above, different face parts (vegetables) when "thrown away" from the screen is replaced by a randomly chosen element of the same kind (that is, an eye would be replaced by another eye, and a nose with another nose) from a database. In this case, the “throwing” action is used as an exploratory action allowing a child to investigate the suitability of a large number of objects for the play goal (i.e. building a face) without being overwhelmed by simultaneous availability of all possible choices. Even with a relatively small number of objects in individual databases, the number of distinctly different patterns (faces) which can be created is very large. Using this approach in another project (build-a-face), the children were free to manipulate face parts with characteristics belonging to different age, gender, race and culture groups.

An example of an interface design which uses the throwing action both for exploration of objects and navigation in digital space is the "Throwing Gallery", also a part of KiddyFace installation (see Figure 9). The goal of this module was to make parts of the collection of the Speed Art Museum in Louisville, Kentucky, accessible even to the youngest audiences.

Physically, the installation consisted of a (hidden) computer with a large touch-sensitive monitor. The monitor was encased in such a way so that the children were presented with an interactive touch-sensitive surface facing upward at a 60 degree angle. The display was at comfortable height for a standing child or a sitting adult. A support for leaning on or sitting was provided through a large, movable, "bean-bag" arm which could be positioned at various distances from the display.

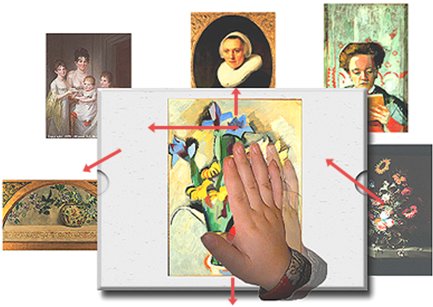

Fig 9: The "Throwing Gallery" module from the KiddyFace installation at the Speed Art Museum, Louisville, Kentucky (Milekic, 1997)

The challenge for the interface design was to provide a way to allow the children to browse the "virtual gallery" which contained a large number of digitized representations of the works of art. The goal was not just to expose the children to the reproductions of artwork, but also to convey educational information, both at the level of individual works and at the level of art as an inherently human activity. The goal on the level of interface design was to provide an environment with minimal demands in terms of cognitive complexity and eye-hand co-ordination requirements necessary for navigation. To allow a child to focus undistracted on a single work of art, at any given time there was only one image on the screen, represented in the largest format possible.

The main mode of exploring this digital gallery was by using the throwing action (although it was also possible to move and reposition an image on the screen without throwing it away). The child could "throw" an image in any direction - left, right, up or down. The "thrown" image would continue moving in the direction of the throw, eventually leaving the screen. At the moment at which the "thrown" image disappeared from the screen, a new image would appear moving from the opposite edge of the screen towards its centre, where it would settle. With the new image in the centre of the display, a short voiceover (in a child's voice) would draw attention to the different aspects of the represented work of art. This interface was especially advantageous for use with children because:

• it uses a simple, natural gesture for exploration and navigation;
• it allows experiential mapping of the 'digital space' to the child's own activity;
• it makes it possible for the educators to convey additional (meta)information about categorical organization of data space by consistent mapping of different categories of the presented material on to the four 'throwing' directions.

Throwing action, which, in the case of touch screen-mediated action may be better described as 'pushing away', is a symbolic (semantic) gesture. Although they perform it with less precision and using a whole arm movement, even very young children are capable of performing this action. Moreover, in touch-screen-mediated throwing, the differences in throwing styles between immature and mature "throwers" are ironed out. A wide, clumsy movement or an elegant wrist "fling" will produce the same effect on the screen.

The fact that the throwing action has a definite direction (as opposed to clicking on a button) allows creation of sequences which are meaningfully mapped on to a child's activity. Thus, by throwing the images from the virtual gallery in one direction, the child will be able to explore this part of digital space in a sequential fashion, comparable to exploring the real space by walking in one direction. Consequently, reversing the direction would allow the child to "go back"; that is, explore the objects manipulated earlier.

By making objects (paintings) also ‘throwable’ in up/down directions, it is possible to create a navigational space which will reflect the categories signified by the objects. In the above illustration (Figure 9), the objects are the paintings in the museum gallery classified into child-friendly categories, like “faces”, “flowers”, “outdoors”. “Throwing” an object to the right or left lets the child explore objects belonging to one category while throwing it up or down brings about a new category. In the example depicted in Figure 2, throwing an object left or right explores the category of “flowers”; throwing it up switches the category to “faces” (portraits); and throwing it down brings the category “animals” (not depicted in the illustration). The possibility of mapping 'categorical' spaces on to the experiential 'navigational' space of a child allows the educators to expose the children to different kinds of meta-knowledge; for example, classification of paintings based on technique (oil, aquarelle, gouache), style (cubist, impressionist, baroque), etc.

Directional mapping can be also used for other purposes; for example, switching between different levels of complexity. In this case 'horizontal' navigation would correspond to a certain complexity level which could be increased by going 'up' or decreased by going 'down'.

Another example of incorporating the throwing gesture into interface design is the mechanism used for “trashing” an object on the screen in the software package ShowMe Tools™. Instead of selecting an object and then going to a pull-down menu option to delete it, one can just “grab” the object and throw it to the left side of the screen where it will end up in the “trash can”.

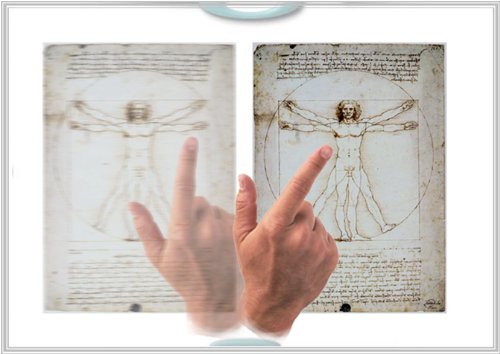

Fig 10: Removing an object from the screen using the “throwing” gesture

Interestingly enough, interactions via object throwing can be easily ported over even to the traditional systems that use the computer mouse as an interaction device. Although there is a slight increase in complexity because of the necessity to map the mouse movements on to the cursor movement, it is still an easy, intuitive way of navigating through digital spaces.

Gestures in 3D space

The use of gestures in three dimensional space was only recently commercially implemented in iPhone by Apple Corporation. However, it was implemented just to a modest extent – iPhone will switch screen orientation from ‘portrait’ to ‘landscape’ mode depending on whether it is held in vertical or horizontal position. But an avalanche of add-on applications for iPhone was quickly generated by independent developers (and generated substantial income for some of them). Examples of gesture-based interactions include Urbanspoon application, where a user can generate a random choice of restaurants in his/her area by simply “shaking” the iPhone, or a popular light-saber application where ‘swishing’ the phone through the air generates a familiar sound from StarTrek movies. It is somewhat surprising that the company that produced a digital device capable of detecting motion (including the speed of movement), orientation in space, and even proximity (a sensor that turns off the touch screen when iPhone is held next to one’s ear during phone conversation) did not use these features to a greater extent in interface design. Most of the ‘gesture-based’ interactions in iPhone interface are still surface based (2D), like the ones used for browsing of photos or music CDs.

Another example of gesture-based interface is provided by Nintendo Wii game consoles. Although extremely popular and physically engaging, the interface is used only for entertainment purposes. However, Wii hardware has attracted the attention of a number of researchers (most notably Johhny Chung Lee from Carnegie Mellon University) who are experimenting with various uses of the existing hardware that ranges from head-tracking to pseudo-3D representation of images on the screen.

A gesture-based interface was designed by the author of this paper (Milekic, 2002) and implemented in a museum setting. The interface was commercialized by MIO, a Philadelphia based design company, and successfully implemented at a number of events.

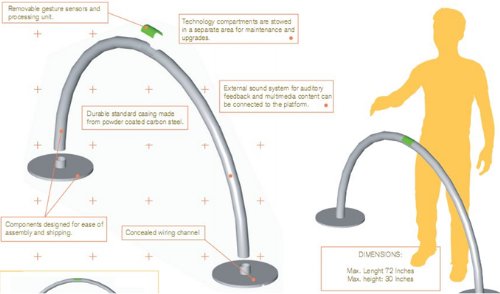

Fig 11: “Gesture station” as designed by MIO

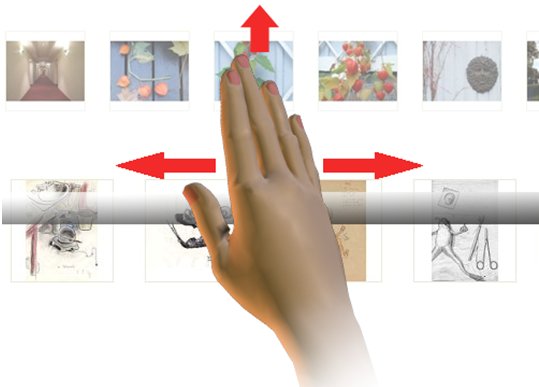

Fig 12: Browsing mechanism for “gesture station”. Moving the hand to the left or to the right browses images within a category (for example, drawings). Moving the hand forward switches to another category (for example, photos) or brings up a menu.

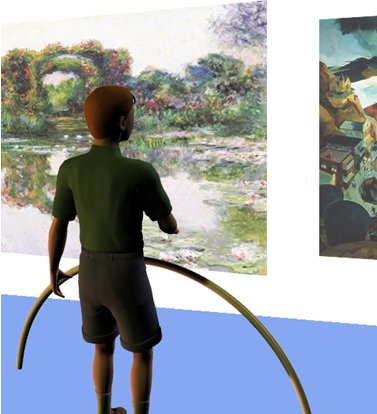

Fig 13: Gesture station setup in a museum setting.
Projected images correspond in size to the originals.

Affection

Emotional ‘dialogue’ plays an important, if not crucial, role in our communication. We are often unaware of the importance that affective signals (facial expressions and body language) play in everyday communication. At the most basic level these signals serve the purpose of indicating that communication has occurred, that the message or intent “came across”. Taking away these “confirmation signals” can have disastrous effects not only on human-to-human communication, but also on human-computer communication. Lack of acknowledgement that a certain action has been recognized has led many a frustrated computer user to repeat their actions and often lose valuable data in the process. As Rosalind Picard states in the introduction to her book Affective Computing, for computers to be able to adapt to us “they will need the ability to recognize and express emotions, to have emotions, and to have what has come to be called ‘emotional intelligence’…”. (Picard, 1997).

Young children are especially prone to react with frustration if their actions have not been recognized. Thus, it is important to provide them with immediate feedback in regard to their interactions with a digital environment. It is important to note here that affective communication is much richer and goes far beyond simple feedback.

It is becoming increasingly evident that emotions play a major role in what we consider to be rational behavior. Antonio Damasio, in his book, Descartes’ Error (Damasio, 1994) provides an example of an individual who, after suffering a lesion in the frontal part of the brain, has lost the ability to access his own emotional responses. According to the test results, the lesion has left his above-average intelligence and other ‘rational’ capabilities intact. In spite of this, his ability to function rationally and intelligently in real life has been severely impaired. Damasio’s interpretation of this finding is that the emotions play an important regulatory role in everyday thinking and decision making by dramatically reducing the number of possible rational decisions. The reduction is achieved by associating positive or negative feelings, based on prior experience, with certain decisions. Choosing to act on decisions connected to a positive past experience, and avoiding the ones that had negative consequences, serves as a simple guiding mechanism for our rational and intelligent behavior.

Communication with current computers and computer applications can be described, as Rosalind Picard puts it, as “affect-impaired”. Computer applications do not provide an affective context for their functioning, nor are they designed to detect, recognize and react to the changes in the affective states of the users. In other words, the ‘affective channel’ in human-computer communication is closed. Although everyone would agree that affective exchange plays a major role in human communication, the question still remains whether it is as important in human-computer interaction. A simple answer to this question may be provided by the research results of Byron Reeves and Clifford Nass from Stanford University. In their book The Media Equation (Reeves and Nass, 1996), they eloquently sum up a decade of research investigating the relationship between humans and the new media, including computers. Their conclusion is summarized in the following sentence:

People respond socially and naturally to media even though they believe it is not reasonable to do so, and even though they don’t think that these responses characterise themselves. (Reeves and Nass, 1996 edition, p. 7)

In a series of experiments, they demonstrated that humans react to social and biological stimuli represented in a variety of media (including the television screen and a multimedia computer) as if they were real. The reaction is unconscious and automatic and is elicited even by very crudely represented stimuli. In their interaction with computers, humans adhere to the same social rules they use in real life with other humans. They are more polite in a direct (“face-to-face”) evaluation of a computer program than when they use a different program for evaluation. Humans react to visually presented inter-personal space cues, as well as to flattery or personality and gender indicators. Thus, it seems that for humans, the ‘affective channel’ in communication with computers is already open.

The questions that naturally follow are, How can one incorporate affect into human-computer communication? And, do the implementation costs of such a decision justify the investment?

There are different ways of adding an affective component to human-computer interaction. Some of them cost nothing and depend solely on the way the software is written. Some of them can be implemented with minimal investment, while others depend on current, expensive, cutting-edge technologies. The first step in introducing emotion to human-computer communication can be implemented with minimal investment. It consists of providing computer applications with affect-expressing abilities. Just by using the same voice prompts that differ in affective quality, one can convey different degrees of satisfaction (or dissatisfaction) with users’ actions, convey a sense of urgency, importance, etc. The specific benefit of building in such affective components in computer applications is that additional information is conveyed quickly and easily without an increase in cognitive complexity.

The major drawback of the previously described example is that affective communication is unidirectional and thus less flexible and adaptable to the changes of context of user actions. For any dialogue, including the affective exchange, it is necessary to be aware of the presence of the other. Thus the first step towards opening of the ‘affective channel’ in human-computer communication for bi-directional exchange may be to allow computers to detect the presence of a human being who can engage in interaction with them.

Currently there are a large number of cheap, commercially available proximity and motion sensors which can be easily interfaced with today’s computers. Relatively easy to build, and capable of conveying fairly simple affective qualities (like interest), presence sensing can have a dramatic effect on human-computer interaction. First, presence sensing on its own can serve as a trigger for starting an application. For example, just standing in front of a painting or approaching a sculpture may trigger a change in light intensity and audio narrative. A step further would be to use the change in proximity as an indicator of ‘interest’.

Fig 14: A prototype of an ‘interest sensing’ application (Milekic, 1997)

An example of ‘interest sensing’ application is depicted in Figure 14. A simple head movement towards the screen allows the user to ‘zoom’ into the painting and see more detail.

Sensing the presence of a human is just the beginning of opening up the ‘affective channel’. In order to establish a true affective dialogue, the computers will have to be able to detect, recognize and interpret human emotions. What emotions are, as well as their relationship or equivalence to specific bodily changes, is still a subject of debate among theorists. However, there is general consensus that bodily changes are reflective of emotional states. Research conducted by Manfred Clynes in the 1970’s indicates that different emotions may produce specific and identifiable patterns of bodily expressions, which he named 'essentic forms’ (Clynes, 1977). Clynes’ apparatus for the registering of ‘essentic forms’ consisted of a single, pressure sensitive button (‘sentograph’) capable of detecting both pressure amount and its direction. Graphical representation of these two dimensions of pressure produces a ‘sentogram’ which differs in form for different emotions. Following Clynes’ nomenclature, Rosalind Picard coined the term ‘sentic modulation’ for the effects of emotion on bodily expression (Picard, 1997).

Humans are very capable of detecting even subtle manifestations of ‘sentic modulation’ as conveyed through facial expression, voice inflection, general posture, gestures and even the dilation of pupils. Thus one of the ways of allowing computers to detect the emotional state of humans would be to provide them with the means of detecting the same bodily changes humans use to infer the emotions of others. Although considerable advances have been made in this area, with prototypes of applications being able to recognize human facial expression, voice ‘signatures’, gaze direction and pupil dilation, they are far from being usable in current computer applications. Building on Clynes’ research one may envision collecting data about a user’s emotional state just by analyzing the characteristics of finger pressure exerted on the keyboard while typing or using a touchpad. Modern touch screens (Surface Acoustic Wave technology) have also the potential of detecting gradients of pressure.

Paradoxically, it seems that providing computers with access to human emotions through the detection of physiological changes not readily observable by humans may be more efficient and easier to implement. These include detection of changes in blood pressure, heart and respiration rate and skin galvanic response. Today’s miniaturized medical technology can be unobtrusively incorporated into the current computer hardware and can provide constant feedback about changes in the user’s physiology. For example, the electrodes for the detection of galvanic skin response can be embedded into the surface of the computer mouse button. The usefulness of monitoring a user’s physiological state has been already recognized in interface design of computer applications where any disturbance of human-computer communication may have tragic consequences, as in the area of air traffic control (Rowe, Sibert, Irwin 1998).

Supporting affective aspects of social communication

The affective component is closely tied to (inter)action. We form relationships with objects (and people) that we touch, for the simple reason that the act of touching and the sensory experience associated with it becomes literally part of ourselves, our experience, that we can recall and relate to. Digital environments were not initially designed to support affective components of communication even though the need for such support was clearly demonstrated by observed human behavior. Early users of the Internet developed a whole ‘language’ consisting of punctuation marks to express their emotions (these are known as ‘emoticons’; for example, ;-) indicates “a smile and a wink”). Today, the language of emoticons has evolved to sophisticated and often even animated graphical representations (Figure 15).

Fig 15: The “broken heart” emoticon provides emotional context for text message

Affection plays a significant role in mediating social interactions where successful interaction devices support it. Thus there are (digital) cameras that are capable of recognizing a smile and only then taking a picture (or, in the absence of it, digitally manipulate the image to produce one!), cameras that recognize faces and focus on them, and cameras that make people look thinner.

The invention of mobile phones dramatically changed the paradigm of how we communicate. Instead of calling a number at a certain geographic location, now we call a specific person, regardless of their location. The affective component in mobile phone interfaces started by being able to choose individual ring-tones, and now it is common that one can see a photo of a person who is calling, or call a friend just by choosing their photo on the screen.

Fig 16: The new “phone book” consists of faces, not numbers
(Copyright ©2007 Nokia. All rights reserved.)

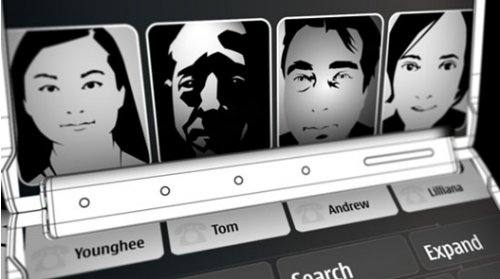

Fig 17: Mobile phone (or “communicator”) design for group communication (Copyright ©2007 Nokia. All rights reserved.)

Another component of affective interaction is ‘personalization’ of different environments, and ability of digital environments to recognize particular users and their preferences. A growing number of Web-based environments now routinely support the affective component of user interactions, sometimes with simple ‘I like it’ or ‘I don’t like it’ choices (StumbleUpon, Del.icio.us), and sometimes with a more sophisticated mechanism. Although many museum Web sites are developing alternative visitor-oriented ‘folksonomies’ (Trant, 2006; Chun et al 2006), I am not aware of any museums that explicitly gauge visitor emotional experience.

An example for affective support in a museum environment is provided by a study of Goren-Bar et al. (2005) using the fresco collection in Castle of Buonconsiglio in Trento, Italy. However, the focus of the study was not the emotional experience related to cultural heritage artifacts. The authors used a simple “like-o-meter” mechanism to identify parts of the museum presentation (delivered on a mobile device) that were most attractive to the visitors.

Emotions and learning

Children naturally prefer affect-supportive environments over affect-suppressing ones, like the traditional school setting. As good educators know, the best way of creating motivated life-long learners is to make the process of discovery a goal in itself. Personal accounts of a learning process can often be described only in ‘emotional’ terms: curiosity, fascination, frustration, confusion, joy, sense of accomplishment, etc. Thus, one may infer that the building of ‘affectionate’ digital environments would prove to be more efficient for educational purposes. For children, it is much easier to relate to a well-defined emotional carrier in the form of an animated agent than to generalized affection like using supportive voice overlays. A well-defined emotional carrier in this context does not imply a realistic or visually sophisticated character. As Reeves and Nass (1996) point out, humans will react socially and naturally to even very crude representations in the media as if they were real. The abundance of ‘edutainment’ software titles in recent years seems to indicate that the industry is aware of these findings. However, most edutainment titles completely miss the point that the discovery process in itself is rewarding and interesting and treat it as a bitter pill which can be more easily swallowed with a helping of engaging, but otherwise empty, computer games.

A step beyond creating ‘affectionate tutors’ is the building of affect-sensitive tutors (Picard, 1997). These environments should be able to detect user states such as boredom, interest, frustration, etc., and use this information to modify the way they interact with the users. Although the future will bring more sophisticated means of registering users’ emotional states, even the traditional systems consisting of a keyboard, mouse and screen can be designed in such a way as to collect this information. For example, some of the user states can be inferred just by analyzing the log of their interactions with an application. Thus, a navigational path and time spent on different topics is a pretty good indicator of the user’s interests (as the marketing experts collecting information on the WWW very well know). A preference for descriptive, diagrammatic or graphic explanations (which, of course, have to be simultaneously available in the application) will point to the specific learning style. On a more basic level, the speed, amplitude and pattern of mouse movements (or key presses) and the number of ‘interruptions’ of the program may indicate users’ general frustration or excitement level.

In the past several years a large body of research accumulated on the use of life-like animated agents (Bates, 1994; Granieri, Beckett, Reich, Grabtree, Badler, 1995; Maes, Darell, Blumberg, Pentland, 1995; Lester and Stone 1997; Elliott, Rickel, Lester, 1999). A recent study indicated that the presence of an animated life-like character in an interactive learning environment may have a strong positive effect (the ‘persona effect’) on students’ perception of their learning experience (Lester, Converse, Kahler, Barlow, Stone, Bhogal, 1997). Within the framework of Affective Reasoner, a program developed at DePaul University, animated agents use facial expressions, speech and music to convey their emotions in real time. Reportedly, adding speech recognition component to the design has allowed children as young as 2 years of age to interact with animated agents (Elliott et al. 1999). In their exploratory synthesis on the development of affective pedagogical agents Elliott and his collaborators suggest the following mechanisms for inferring the user’s emotional state:

1. Inquiry: Ask the user. Observations of interactions with Affective Reasoner indicated that users are motivated to express themselves to an ‘understanding’ computer agent.
2. Stereotypes: Users tend to exhibit stereotypical individual behaviour characteristics (like being impatient, following the rules, etc.) consistently across tasks.
3. Context: Use context information. For example, a user who consistently fails on certain task is likely to feel frustrated.
4. Affective Stereotypes: Infer how most users would feel based on analysis of previous interactions with different individuals.
5. Self-Inspection: a well-built affective agent should exhibit affective responses resembling the ones of a real user in certain situations. Thus, if no other information about the user is available, the agent can always resort to self-inspection.

It is worth noting that none of the above suggested criteria requires any additions or changes to the existing computer hardware.

Control

In general, the human need for control of the environment can be broken down into three (related) categories. These are the control of:

• what (choice)
• how (method), and
• when (time).

Choice: Interacting with museum objects (whether in an actual museum or Web page) should provide an individual with an easy way to choose objects of interest. User choices should be preserved and available to the user at a later point in time.

How: The delivery method should also be under user control. Depending on a personal preference or learning style, the content could be delivered in form of text, images, podcasts, audio tours, video clips, etc. The user should also be able to choose the delivery device – whether it is an MP3 player for audio files, or a variety of personal digital devices (PDAs, iPods and many mobile phones) capable of displaying visual content. SF MOMA is one of the pioneering institutions experimenting with different delivery devices (Samis, Pau 2006). Another aspect of control of delivery method includes the choice of the level of complexity of presented material. Ideally, the material should be structured in such a way as to offer a spectrum of complexity ranging from a brief description (corresponding to a museum label) to the level of a scholarly article. In simple words, a museum visitor should always be able to get “more” information on a certain topic. Needless to say, a visitor should also be able to choose the language in which the content is delivered.

When: As exemplified by success of on-demand TV services like TiVo, as well as the recent trend of Internet-based video streaming (Netflix, the largest Internet-based distributor of movies, quietly made thousands of movies available for on-demand streaming), humans are very eager to be in control of time. Many museums are aware of this trend and provide pre-visit information packages on their Web sites, and some of them are even doing post-visit follow ups.

Most of these control needs are eloquently summarized in a blog entry by Dan Cohen, the director of the Center for History and New Media, and one of the attendees of the recent Smithsonian 2.0 event:

“The young, brilliant David Recordon of Six Apart summarized what the 2.9 project should result in (I’m paraphrasing here from memory):

Before I visit Washington, I want to be able to go to the web and select items I’m really interested in from the entire Smithsonian collection. When I wake up the next morning, I want in my inbox a PDF of my personalized tour to see these objects. When I’m standing in front of an object in a museum, I want to see or hear more information about it on my cell phone. When an event happens related to an object I’m interested in, I want a text message about it. I want to know when it’s feeding time for the pandas, or when Lincoln’s handball will be on public display. And I want to easily share this information with my classmates, my friends, my family.”

Control and interface

In order to exercise control over an environment, one has to be aware of what is going on in the environment and of the consequences of one's actions. In the field of interface design, this criterion has been known as the principle of visibility (Hutchins, Hollan, Norman 1986), a misnomer to a certain extent because feedback to the user can also be provided through perceptual channels other than visual. Implementing the following in interface design satisfies the principle of visibility:

• the users should be aware of all possible actions available to them at any given point in time;
• the users should receive immediate feedback that their actions have been communicated to the system;
• the users should get adequate information as to the consequences of their actions;

Kirsh (1997) notes that the more challenging interpretation of the visibility principle is that an effective interface should also provide an indication of what a user ought to do next in order to reach his/her goal. Although this may seem a far-fetched goal, interpretation of perception as an active process implies that this is what is happening in our everyday interactions with the environments (Gibson 1966, Gibson 1979). Our exploratory activities provide us not only with information about the environment but also with information relevant to our determining of what to do next. In the context of digital interface design, and especially with some general knowledge of the user's goals, the same effect can be achieved by biasing the visibility of environment affordances in favor of those consistent with the anticipated user's goal (Kirch 1997).

Control & navigation

The issue of user control of navigation has not received much attention in regard to software applications for young children. However, it has received considerable attention in the framework of instructional design, and these results can be, to some extent, generalized to younger audiences.

In their recent article Lawless and Brown (1997) present an overview of the research interpreting the effects that the design and control in multimediated learning environments have on the efficacy of knowledge transfer. They list the hierarchy of five basic navigation and content control levels that can be imposed on a digital learning environment:

• browsing
• searching
• connecting
• collecting, and
• generating.

Browsing provides substantial navigational freedom but is less structured in terms of content presentation. Navigational paths tend to be haphazard and random. Searching allows somewhat higher level of learner control by providing support for investigation of a single topic or concept. However, it also implies that the learner has a well defined goal in mind. Connecting support provides the users with the ability to create permanent links between concepts and topics they consider to be related. This level is generative in a sense that it allows the user to redefine navigational paths. Collecting information involves selection and extraction of related information. The end product is often a topic-specific ‘folder’ with ‘clippings’ in a variety of media. The generative level of control allows learners to contribute to the instructional database itself.

Although the above-mentioned levels are general enough to be applied to the design of learning environments for children, the obvious challenge is to make them compatible with a preliterate audience. A suggestion for possible search mechanisms could be visual inspection of catalogued data (consisting of objects, or previously visited screens). Another possibility is to use speech recognition software and provide a more natural input for search terms. And while providing an intuitive and child-friendly mechanism for connecting the data may prove to be an elusive task at this age, creating collections seems to be a natural (and often commercially exploited) tendency of pre-schoolers.

“Humane” Design Guidelines

Due to large variations in cognitive and motor skills that exist across different segments of the population referred to as ‘children’, it is hard to provide very specific guidelines which would be applicable to every subgroup of this population. The situation is further complicated by the fact that different software applications are bound to have different desired outcomes. Nevertheless, there are some general design principles that are especially appropriate for this population. In the following sections I will propose these guidelines with examples of their practical implementation. Of course, the provided examples should serve only as illustrations. The number and nature of possible implementations of these guidelines is constrained only by the creativity and imagination of application designers.

General guidelines

The proposed guidelines are based on deceptively simple observation from real life: that any human activity is undertaken for the sake of some desired outcome. The outcome need not be very abstract, and the person carrying out the activity may not even be consciously aware of it. For instance, I may unconsciously brush aside a hair that happens to be in my visual field, or adjust my position in an uncomfortable chair. The desired outcomes in these examples are clear visual field and comfort.

The desired outcomes can also be very complex and cater to different needs. Even a simple activity, like going out to a movie, may satisfy a number of different needs (desired outcomes): a wish to see another work by a known director, a desire to spend time together with friends, a need to break up monotonous daily routine, etc. It is worth noting that the existence of different needs (and desired outcomes) is not, in itself, a guarantee that certain activity will take place. Each activity carries with it a certain ‘cost’, either in terms of physical or mental effort, or its emotional value. It is the relationship between this ‘cost’ and the strength of different needs that determines whether certain activity will be initiated or continued.

The above, admittedly simplistic, analysis may seem far removed from the principles of interface design. However, the history of technological innovations can be viewed as a series of steps which make certain basic human needs easier to achieve: to communicate with others (telephone); to know what is happening (television); to share experiences (big events, sports). Within this framework I propose a single, general principle of digital interface design:

• The interaction mechanisms in the digital medium should be designed in such a way as to allow the user to achieve the same effect (outcome) with substantially less effort, as compared to an analogous real life activity.

Please note that this principle can be restated in the following way by emphasizing the outcome of the activity:

• The interaction mechanisms in the digital medium should be designed in such a way as to allow the user to achieve more (both objectively and subjectively) for the same amount of effort, as compared to an analogous real life activity.

In the realm of digital applications, the effort which the user invests is likely to be mental or related to emotional aspects of interaction. Therefore, most of the specific strategies will be aimed at:

• reduction of the cognitive complexity of interaction
• maximizing the effects of the user’s actions, and
• providing support for the affective and social components of the interaction.

One must also note here that traditionally used interaction devices, like the keyboard and the mouse, are not ideally suited for children and that the suggested design strategies will tend to have substantially greater effect when used in conjunction with a child-friendly interaction device like a touch screen.

Design principles & implementation examples

The following design principles are divided into three different groups, mainly for ease of presentation, because their effects are due to factors that span two or more groups. A strategy of introducing an animated agent capable of affective exchange into design would be in group three (strategies that enhance communication). Yet this same procedure also decreases cognitive load (group one) because the affective channel can be used to convey additional information without an increase in cognitive complexity. With this in mind, the tentative grouping of design principles is into the following strategies:

• strategies that lead to reduction of cognitive load & complexity;
• procedures that reduce both the necessary physical effort (repetitive actions) and the need for highly developed motor or eye-hand co-ordination skills;
• procedures that enhance communication.

Some of the strategies that may lead to the reduction of cognitive complexity (a) of interactions with an application (and hence to the reduction of the necessary mental effort on the user’s side) are presented in the list below. As noted earlier, this is not an inclusive list, but rather a suggestion of useful design practices:

• provide support for complementary actions (as defined by Kirsh)
• support cognitive mapping – mapping of experiential to representational
• provide clear indication of the system affordances with biased representation in favour of the ‘likely user goal’
• make use of over-learned skills (on/off switches, etc.)
• make use of user’s mental model as a design metaphor (story plots, knowledge of fictional characters, etc.)
• provide gradual increase in complexity of interactions.

Strategies for the reduction of both physical effort and the need for eye-hand co-ordination skills (b) would include the following:

• provide natural (gesture based) navigation
• support effect magnification & automation (or repetitive tasks), and
• adapt to lack of skill and provide appropriate compensation.

Procedures that enhance human/computer communication include:

• provide redundant information through different channels (visual, auditory, proprioceptive, tactile)
• include affective channel, and
• try to infer user’s intent and goals.

In the following sections I provide a brief overview of and practical implementation suggestions for the above-mentioned procedures.

Supporting complementary actions

As defined earlier, complementary actions (also known as ‘epistemic’ actions) are the physical actions humans use to make their own mental operations easier, faster or more reliable (Kirsh 1995). Examples of complementary actions from everyday life abound: from tapping one’s foot to keep the rhythm during music practice, to jotting down intermediary results of arithmetic computations or following with one’s finger a line of printed text. In spite of general acceptance of the usefulness of complementary actions, there has been surprisingly little research on design principles that would support such actions in human/computer interaction. Studying the strategies developed by the players of a popular computer game “Tetris” Kirsh and Maglio (1994) documented that they rely heavily on complementary actions such as frequent rotation of game pieces. In their study they demonstrated that by rotating the game piece ‘physically’ before deciding on the next action, the “Tetris” players reduced the cognitive complexity of the task in at least three ways:

• by reducing memory requirements necessary for mental rotation, i.e, space complexity
• by reducing the number of steps involved in mental computation, i.e. time complexity
• by reducing the probability of error of mental computation, i.e. unreliability (Kirsh and Maglio, 1994).

Although support for specific complementary actions will depend on the nature of a particular software application, the more interesting question is whether there are some general design principles which would provide such support regardless of application. Even before we consider this question, we should note that there is one characteristic of the real world which vastly simplifies our interactions in it. This feature did not make it to the most popular computer operative systems for no other reason than historic tradition. I am referring to the fact that in the real world the results of our actions tend to persist over time. If I am reading a book, and leave it open on my desk, I will (most likely) find it there the next morning and be able to continue where I left off without having to remember the page number and look for it again. In contrast, this is exactly what I have to do with my computer and word processor – every morning when I start up my computer I have to re-create the circumstances of my previous activities manually. So, before we even suggest which kind of activities may make human-computer interaction easier, let us adopt this as the most general principle:

• digital environments should preserve the ‘state of the world’ when they are not in use.

The value of being able to continue with activities where one left of has been recognized in some manufacturers, so most of the new portable computers come with a ‘suspend to disk’ feature which preserves the exact state of working environment while the computer is turned off.

Another characteristic of the real world which, again for historical reasons, was not replicated in digital environments is the preservation of the results of actions. In other words, when I spend time writing on a piece of paper, if I leave to have lunch, or turn the light off in the room, my writing will not disappear. Again, this is exactly what happens in traditional interactions with personal computers – if you write something and forget to save on the hard drive by issuing a specific command to that effect, chances are you will lose your document. Losing the results of one’s effort is the most common experience among computer users, and happens both to expert and novice users alike. Thus, another general principle of friendly design is:

• digital environments should automatically and continuously preserve the results of a user’s actions.

It is interesting to note that both of these features have been implemented in operative systems used for portable electronic Personal Digital Assistants (PDAs) like Palm Pilot.

Assuming that the digital environment we are designing will automatically preserve the state of the world and outcomes of a user’s actions, we can turn to the question of support for activities that make interactions with these environments easier. In real life, complementary activities include pointing, arranging the position or orientation of objects or creating reminder marking or annotations (like dog-earing a book page) in the environment.

Pointing is one of the most common complementary activities, especially during continuous operations that involve a number of similar steps, like reading or counting. Since pointing is external to objects both in the real and digital world, one would think that there is no need to provide explicit support for this action. However, digital environments offer the possibility of enhancing pointing by having the objects that were pointed to ‘remember’ this action and provide some visible clue to that effect. Objects pointed to (by using the mouse cursor or a finger on a touch screen) may temporarily get a bright ‘halo’ or change in color. What would distinguish this activity from straightforward marking would be that the change induced by pointing will be transient; that is, the ‘halo’ around the objects that were pointed to would gradually disappear. In this way, the simple action of pointing would provide not only the information about which objects were already pointed to (counted, for example), but also the temporal information about which one was most recently the focus of attention.

Changing the position or orientation of objects is another frequent complementary activity during grouping, sorting or other organizing activities. Consider the activity depicted in Figure 2, which would be almost impossible to solve without this kind of activity.

Fig 18: Example of a task where the use of complementary actions leads to dramatic decrease in mental effort necessary for the solution. The goal was to decide whether all letters differ in size.

So, another way of supporting user’s complementary actions is to:

• enable the user to change the position and/or the orientation of objects in a digital environment.

Being able to re-group the objects or change their orientation can be also considered as one way of allowing the user to mark or annotate their environment.

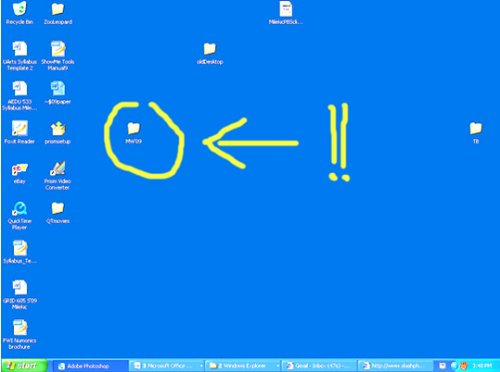

Fig 19: Why is this not possible? (Annotated screenshot of my desktop)

Marking of the objects can also be supported in a more direct way. This feature has been supported to some extent in some operating environments. For example, in Macintosh OS the user may choose the color of an individual folder. However, this involves:

• selecting of the folder
• clicking on the ‘label’ menu on the menu bar, and
• choosing a color from the drop-down menu.

Ideally, complementary actions should be straightforward and have an immediate effect. Relative increase in size has been used throughout the history of humankind as an indicator of importance (for example, the size of depicted Egyptian pharaohs and dignitaries corresponded directly to their hierarchical status, not to mention the more recent ‘larger than life’ representations of famous individuals in Western traditions). Relative size is also an indicator of the significance of depicted objects and individuals in children’s drawings. Indicating the relative importance of a folder on the desktop may be achieved in a more natural way by being able to directly manipulate its size (for example, by ‘pulling’ on a corner). It is worth noting that being able to resize a window, both in Windows and Macintosh OS, serves a different purpose (that of being able to see more of the contents of a folder).

Explicit annotation of the environment is also one of the common complementary actions in real life (which explains the popularity of refrigerator magnets and different kinds of sticky notes). Although this feature is provided in sophisticated word processors, or it can be purchased as a standalone software application, there is no reason why it should not be supported by the environment itself. (Thus) another design principle:

• digital environments should allow the users to easily mark (through change of size, color, border etc.) objects, and should support more sophisticated annotation functions (marking, writing and drawing on objects and/or backgrounds).

Since many of the complementary activities have as the goal some kind of organizing or sorting of objects, these activities could be automatically enhanced.

Conclusion

In this paper I make a case that when designing interfaces with the digital medium, one should focus on the needs of target population, rather than on technological accomplishments. With its visual complexity, personal significance and fuzzy interpretation boundaries, cultural heritage information is an ideal test bed for new interface ideas with museum collections (now also available in digital format). Of course, the main question is still: “What are the actual needs of individuals who are interacting with information provided by museums?” However, with the increased availability of the Internet (and other communication devices), it is becoming evident that the 21^st century consumer of information is very different from the 20^th century museum visitor. Although many ideas described in this paper were tried out and tested in different museum settings, what is still lacking is a comprehensive theory of “cultural heritage (museum) information consumers”.

References

Bolt, R. A. (1980). Put-That-There: Voice and Gesture at the Graphics Interface, Proceedings of SIGGRAPH ’80, ACM Press.

Clark, A. (1997). Being There: Putting Brain, Body, and World Together Again. The MIT Press, Cambridge, Mass.

Clynes, M. (1977). Sentics, the touch of emotion. Doubleday Anchor, New York.

Chun, S., R. Cherry, D. Hiwiller, J. Trant & B. Wyman, (2006). “Steve.museum: An Ongoing Experiment in Social Tagging, Folksonomy, and Museums”. In J. Trant & D. Bearman (Eds.), Museums and the Web 2006: selected papers from an international conference. Albuquerque, NM: Archives & Museum Informatics. Available http://www.archimuse.com/mw2006/papers/wyman/wyman.html

Cohen, D. (2009). Smithsonian 1.1 and 2.9. [blog entry]. January 27th. http://www.dancohen.org/2009/01/27/smithsonian-11-and-29/#comments

Damasio, A. (1994). Descartes’ Error: Emotion, Reason, and the Human Brain, Avon Books

Efron, D. (1941). Gesture and Environment, King’s Crown Press, New York.

Gibson, J.J. (1966). The Senses Considered as Perceptual Systems, Houghton Mifflin, Boston.

Gibson, J.J. (1979). The Ecological Approach to Visual Perception. Houghton Mifflin, Boston.

Goren-Bar, D., Graziola, I., Rocchi, C., Pianesi, F., Stock, O., Zancanaro, M.(2005). Designing and Redesigning an Affective Interface for an Adaptive Museum Guide. In: Jianhua, Tao, Tieniu, Tan and Rosalind, PIcard (eds.) Affective Computing and Intelligent Interaction October 22-24, 2005, Beijing, China. pp. 939-946.

Hummels, C., G. Smets, K. Overbeeke (1998).” An Intuitive Two-Handed Gestural Interface for Computer Supported Product Design”. In Wachsmuth, I.& M. Froelich (Eds.) Gesture and Sign Language in Human-Computer Interaction. Springer.

Hutchins, E.L., J.D.Hollan, D.A. Norman (1986). “Direct manipulation interfaces”. In Norman, D.A., & S. Draper (eds.) User Centered System Design: New Perspectives on Human-Computer Interaction, pp. 87-124. LEA.

Johnson, M. (1987). The Body in the Mind: The Bodily Basis of Imagination, Reason and Meaning. University of Chicago Press.

Kirsh, D., P. Maglio (1994). “On Distinguishing Epistemic from Pragmatic Actions”. Cognitive Science, 18: 513-549

Kirsh, D. (1997). “Interactivity and multimedia interfaces”. Instructional Science 25: 79-96. Kluwer Academic Publishers.

Kendon, A. (1986). “Current Issues in the Study of Gestures”. In Nespoulous, Perron, Lecours (Eds.) The Biological Foundations of Gestures: Motor and Semiotic Aspects, LEA.

Kramer, A. (1998). “Classifying Two Dimensional Gestures in Interactive Systems”. In Wachsmuth, I., M. Froelich (Eds.) Gesture and Sign Language in Human-Computer Interaction: International Gesture Workshop Proceedings. Bielefeld, Germany, September 1997. Springer.

Krueger, M.W. (1993). “An easy entry artificial reality”. In Wexelblat, A. (Ed.) Virtual reality applications and explorations. Academic Press Professional, Cambridge, MA.

McNeill, D. (1992). Hand and Mind: What Gestures Reveal about Thought. University of Chicago Press.

Milekic, S. (2005). US Patent US6,920,619 B1 for an original way of interacting with a visual display.

Milekic, S. (2003). “The More You Look the More You Get: Intention-based Interface using Gaze-tracking”. In Bearman, D.,& J. Trant (eds.) Museums and the Web 2003: Selected papers from an international conference, pp 57-72. Archives and Museum Informatics, Pittsburgh. Available: http://www.archimuse.com/mw2003/papers/milekic/milekic.html

Milekic, S. (2002). “Towards Tangible Virtualities: Tangialities”. In Bearman, D., & J. Trant (eds.) Museums and the Web 2002: Selected papers from an international conference. Archives and Museum Informatics, Pittsburgh. http://www.archimuse.com/mw2002/papers/milekic/milekic.html

Norman, D. A. & S. Draper (Eds.) (1986). User centered system design: new perspectives on human-computer interaction. Hillsdale, N.J.: L. Erlbaum Associates.

Norman, D. (1988). The Psychology of Everyday Things. New York: Basic.

Picard, R. W. (1997). Affective Computing. MIT Press, Cambridge Massachusetts.

Reeves, B., C. Nass, (1996). The Media Equation: How People Treat Computers, Television, and New Media Like Real People and Places. CSLI Publications & Cambridge University Press.

Samis, P. and S. Pau (2006). “‘Artcasting’ at SFMOMA: First-Year Lessons, Future Challenges for Museum Podcasters broad audience of use”. in J. Trant and D. Bearman (eds.) Museums and the Web 2006: Proceedings. Toronto: Archives & Museum Informatics. http://www.archimuse.com/mw2006/papers/samis/samis.html

Sears, A., B. Shneiderman (1991). “High precision touchscreens: design strategies and comparisons with a mouse”. International Journal of Man-Machine Studies 34, 593-613.

Shneiderman, B. (1998). Designing the User Interface: Strategies for Effective Human-Computer Interaction. Addison-Wesley.

Trant, J. (2006). Social Classification and Folksonomy in Art Museums: early data from the steve.museum tagger prototype. A paper for the ASIST-CR Social Classification Workshop, from http://www.archimuse.com/papers/asist-CR-steve-0611.pdf

Weisler, S., S. Milekic (1999). The theory of language. book & interactive CD ROM, MIT Press, Cambridge, MA.

Wexelblat, A. (1998). Research Challenges in Gesture: Open Issues and Unsolved Problems, in Wachsmuth, I., Froelich, M. (Eds.) Gesture and Sign Language in Human-Computer Interaction, Springer

Web sites:

Alexander Graham Bell http://www.ideafinder.com/history/inventors/bell.htm

Del.icio.us sharing browser bookmarks http://del.icio.us/

Flickr photo sharing and tagging http://www.flickr.com/

MIO design company www.mioculture.com

Smithsonian 2.0 http://www.smithsonian20.si.edu/schedule.html

ShowMe Tools™ overview: http://www.flatworldinteractives.com/tutorials.html

YouTube video sharing http://youtube.com/

Cite as:

Milekic, S., Action, Affection and Control: Interface Guidelines for Complex Visual Content. In J. Trant and D. Bearman (eds). Museums and the Web 2009: Proceedings. Toronto: Archives & Museum Informatics. Published March 31, 2009. Consulted http://www.archimuse.com/mw2009/papers/milekic/milekic.html

• Workshops
• Sessions
• Speakers
• Interactions
• Demonstrations
• Events
• Exhibits
• Best of the Web
• Committees
• Community On-line

• produced by

• Join our mailing list
• Search A&MI


last updated: October 27, 2010 4:57 PM
[analytics code]

Archives & Museum Informatics, 158 Lee Avenue, Toronto, Ontario, M4E 2P3 Canada
Telephone: +1 416 691 2516 | Fax: +1 416 352 6025 | E-mail:
Copyright © 2009 – Archives & Museum Informatics – All rights reserved.
